You are here: Home / Products / GDT and Spark Gaps / Spark Gap - Leaded / MSA1 Series | Leaded 3000A Surge Current

Product Search

RFQs . Stock Check . Samples:

Call: +1(800) 367-4835

Email: sales@meritekusa.com

MSA1 Series | Leaded 3000A Surge Current

MSA1 – Spark Gap

SKU: MSA1 Category: Spark Gap - Leaded
  • Description
  • Product Numbering System
  • Part Numbers
Series Number
MSA1
Description
Spark Gap, Leaded, 3000A Surge Current
Lead Free Status / RoHS Status
Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Additional Information
–
Download Full Specifications

Product Characteristics

DC Spark-Over Voltage (Vs) 140 ~ 5000V
Insulation Resistance Test Voltage 50~500V min.
Insulation Resistance Ir ohm 100MΩ min.
Capacitance (1KHz – 6Vmax) 0.8pF max.
Operating Temperature –
Package / Case Axial
Applications General Purpose
Mounting Type Through Hole
Size / Dimension 3.1mm dia, 4.1mm dia (options)
Surge Current Capacity (8/20µs) 3000A
Surge Life Test (8/20µs, 100A) 250 Times
Tolerance +/-20%, 25%, 30%
Lead Style Axial Leaded
Features Response time <1ns
Ratings UL497A and UL497B
Series MSA1
Packaging Tape and Reel
Part Status Active

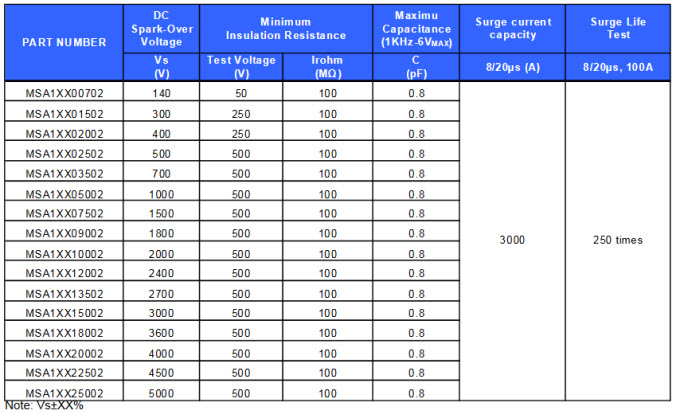

List of Series Part Numbers

MSA12000702, MSA12001502, MSA12002002, MSA12002502, MSA12003502, MSA12005002, MSA12007502, MSA12009002, MSA12010002, MSA12012002, MSA12013502, MSA12015002, MSA12018002, MSA12020002, MSA12022502, MSA12025002, MSA12500702, MSA12501502, MSA12502002, MSA12502502, MSA12503502, MSA12505002, MSA12507502, MSA12509002, MSA12510002, MSA12512002, MSA12513502, MSA12515002, MSA12518002, MSA12520002, MSA12522502, MSA12525002, MSA13000702, MSA13001502, MSA13002002, MSA13002502, MSA13003502, MSA13005002, MSA13007502, MSA13009002, MSA13010002, MSA13012002, MSA13013502, MSA13015002, MSA13018002, MSA13020002, MSA13022502, MSA13025002
