Series Number
|
MXTT
|
|
Description
|

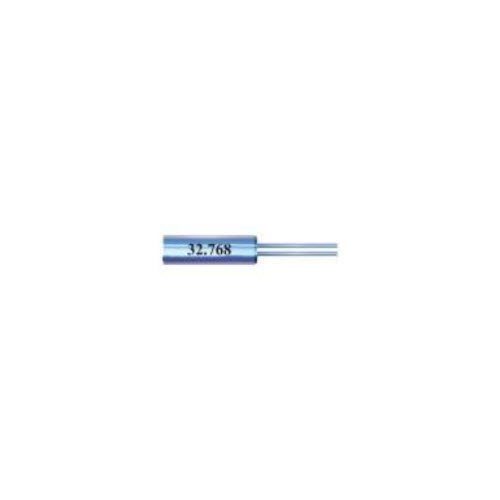

Crystal – 32.768kHz Cylindrical Leaded, 5.1×1.5mm
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Frequency | 32.768kHz |
| Load Capacitance | 6, 12.5pF |
| Frequency Tolerance | +/-10, +/-20ppm |
| Frequency Stability | – |
| Operating Temperature | -10 ~ 60 °C (options available) |
| Package / Case | 5.1×1.5mm |
| Applications | Measuring Instruments, Clock Source, Communications, A/V Equipment |
| Mounting Type | Through Hole |
| ESR | 40kohms Max. |
| Drive Level | 1uW Max. |
| Insulation Resistance @ 100Vdc ? 15V | 500Mohms Min. |
| Storage Temperature | -40 ~ 85 °C |
| Lead Style | Radial Leaded |
| Features | Real Time Clocks |
| Size | 5.00mm x 1.40mm(DIA.) x 1.40mm |
| Series | MXTT |
| Packaging | Bulk |
| Part Status | Active |
