Part Number
|
SMF7.0A
|
|
Description
|

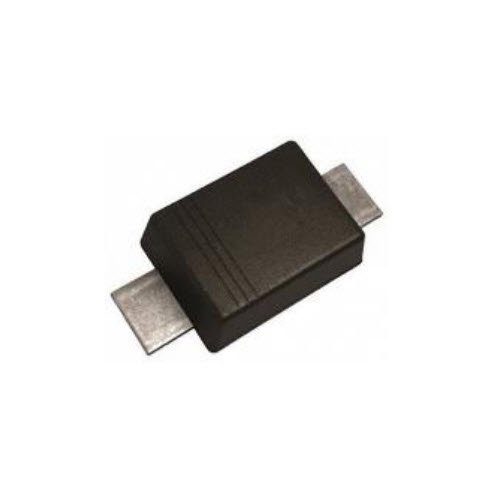

TVS Diode 7V 200W Unidirectional 12V Clamp 16.67A Ipp SOD123FL
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
UL/cUL E223045
|
Product Characteristics
| Peak Power Dissipation (@10/1000us) | 200W |
| Peak Forward Surge Current | 300A |
| Peak Reverse Working Voltage | 7V |
| Reverse Surge Current (Max.) | 16.67A |
| Operating Temperature | -55 ~ +150 degC |
| Package / Case | SOD-123FL |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Voltage Breakdown (Min.) | 7.78V |
| Voltage Breakdown (Max.) | 8.6V |
| Test Current | 10mA |
| Reverse Leakage [email protected] VRWM (Max.) | 100uA |
| Clamping Voltage (Max.) | 12V |
| Directional Channels | Uni-directional |
| Features | Low incremental surge resistance |
| Series | SMF |
| Packaging | Tape and Reel |
| Part Status | Active |
