Series Number
|
SF51G~SF58G
|
|
Description
|

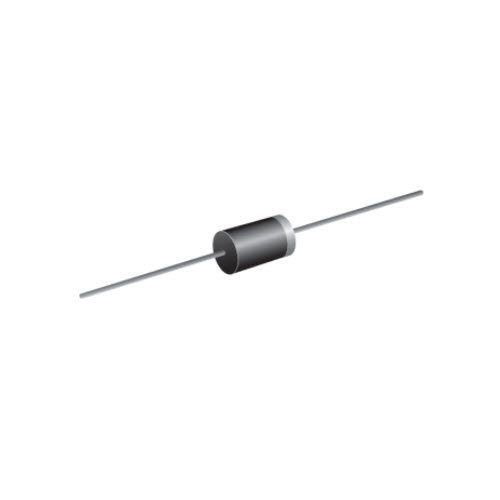

Diode – Superfast Recovery Rectifier 5.0A DO-201AD Leaded Package
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Reverse DC Voltage | 50 ~ 600V |
| Forward Current | 5.0A |
| Max Forward Voltage | 0.95 ~ 1.70V |
| Peak Forward Surge Current | 150A |
| Operating Temperature | -65 ~ 150 °C |
| Package / Case | DO-201AD |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Max Reverse Current @ 25?C | 5.0uA |
| Thermal Resistance | 35 °C/W |
| Junction Capacitance | 60 ~ 120pF |
| Max Reverse Recovery Time | 35ns |
| Power Dissipation | – |
| Features | Superfast recovery times |
| Ratings | – |
| Series | SF51G~SF58G |
| Packaging | Tape and Reel |
| Part Status | Active |
