Series Number
|
1N4148TR
|
|
Description
|

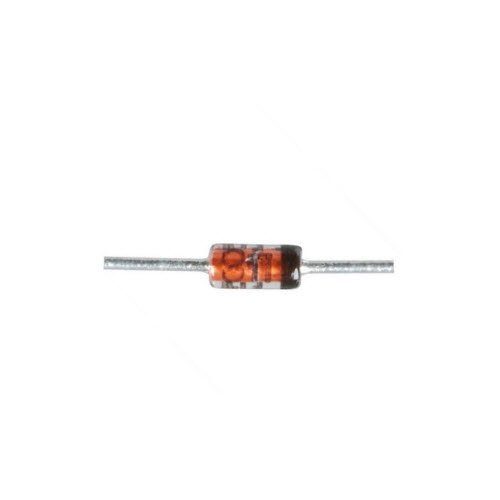

Fast Switching Diodes – DO-41G Leaded Package
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Reverse DC Voltage | 75V |
| Forward Current | 0.45A |
| Max Forward Voltage | 1.0V |
| Peak Forward Surge Current | 2A |
| Operating Temperature | -65 ~ 150 °C |
| Package / Case | DO-35 |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Max Reverse Current @ 25?C | 25nA |
| Thermal Resistance | – |
| Junction Capacitance | 4.0pF |
| Max Reverse Recovery Time | 4.0ns |
| Power Dissipation | 500mW |
| Features | Hermetically Sealed Glass |
| Ratings | – |
| Series | 1N4148TR |
| Packaging | Tape and Reel |
| Part Status | Active |
