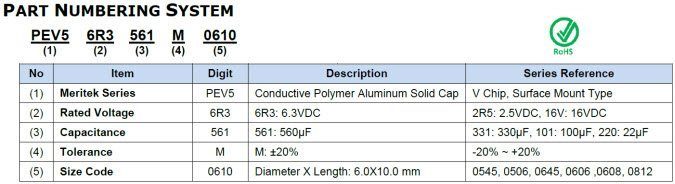

Series Number
|
PEV5
|
|
Description
|

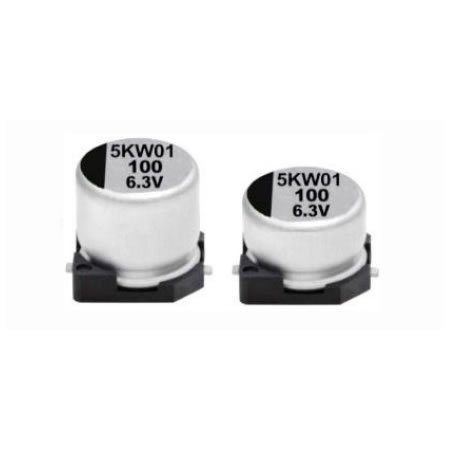

Conductive Polymer Capacitor – V-Chip 5000 hours
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Capacitance | 22 – 820uF |
| Tolerance | +/-10%, +/-20% typ. (options available) |
| Voltage – Rated | 2.5 – 25VDC |
| Max ESR @100kHz | 9 ~ 45 mohm |
| Operating Temperature | -55 – 105 °C |
| Package / Case | SMD Can 0545, 0506, 0645, 0606, 0608, 0610, 0807, 0810, 0812 |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Dissipation Factor (Tangent) | 0.1 |
| Leakage Current Max. | 235 ~ 1792 uA |
| Ripple Current @100kHz | 2100 ~ 5380 Arms |
| Size / Dimension | 5×5.3×4.2mm (Options) |
| Leaded Type | – |
| Features | Low ESR |
| Load Life | 5000 Hours @ 105 °C |
| Series | PEV5 |
| Packaging | Tape and Reel |
| Part Status | Active |
