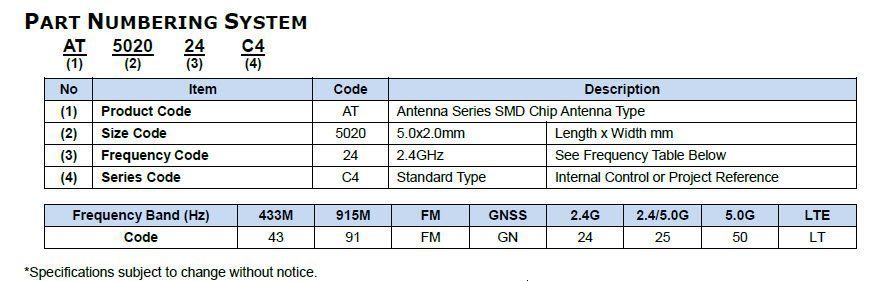

Part Number
|
AT502024C4
|
Description
|

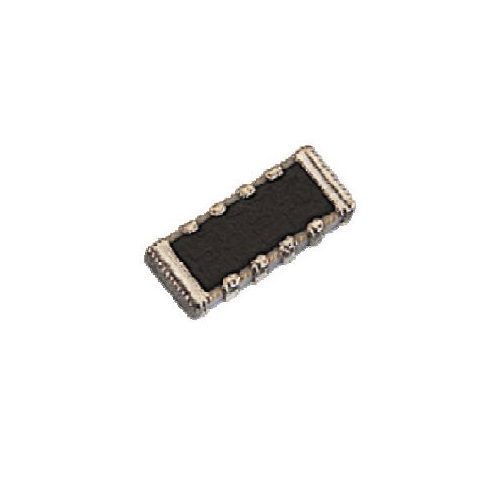

2.4GHz Chip Antenna
|
Lead Free Status / RoHS Status
|
|
Moisture Sensitivity Level (MSL)
|
|
Additional Information
|
–
|
Product Characteristics
Working Frequency | 2450MHz |
Maximum Power | |
Bandwidth | 2400~2500MHz |
Azimuth Bandwidth | Reflow Process Compatible |
VSWR | ≤2.0 |
Package / Case | 5020 |
Applications | |
Mounting Type | Automatic Surface Mount |
Return Loss | |
Polarization | Linear |
Peak Gain | 0 dBi |
Impedance (ohm) | 50 |
Efficiency | |
Features | Linear Polarization |
Size / Dimension | 5.0 x 2.0mm |
Series | C4 |
Packaging | Tape & Reel |
Part Status | Active |
