Series Number
|
AT16082G41622Y
|
|
Description
|

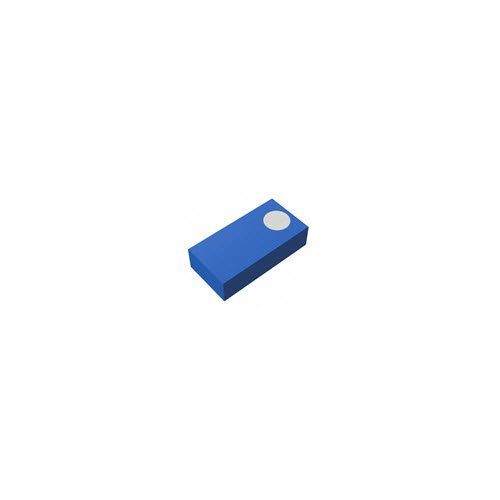

2.4GHz 1W 1.6×0.8mm RF Ceramic Chip Antenna
|
|
Lead Free Status / RoHS Status
|
RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Working Frequency | 2.4GHz |
| Maximum Power | 1: 1W |
| Bandwidth | 150MHz (Typ.) |
| Azimuth Bandwidth | Reflow Process Compatible |
| Operating Temperature | -40 ~ +105 degC |
| Package / Case | 1608 |
| Applications | Bluetooth gadget, Zigbee device, ISM band equipment |
| Mounting Type | Surface Mount |
| Return Loss | 6dB max. |
| Polarization | Linear |
| Peak Gain | 2.0 dBi (Typ.) |
| Impedance (ohm) | 50 |
| Termination | Ag |
| Features | Omin-directional Radiation |
| Size / Dimension | 1.6 x 0.8mm |
| Series | AT-22Y |
| Packaging | Tape & Reel |
| Part Status | Active |
